UGREEN DXP6800 PRO
Oct 20th
Ordered
Today – Oct 21st
Order Ready
Oct 23rd – Oct 27th
Delivered
Ships in 1–3 business days with tracking.
Pay securely with
Description

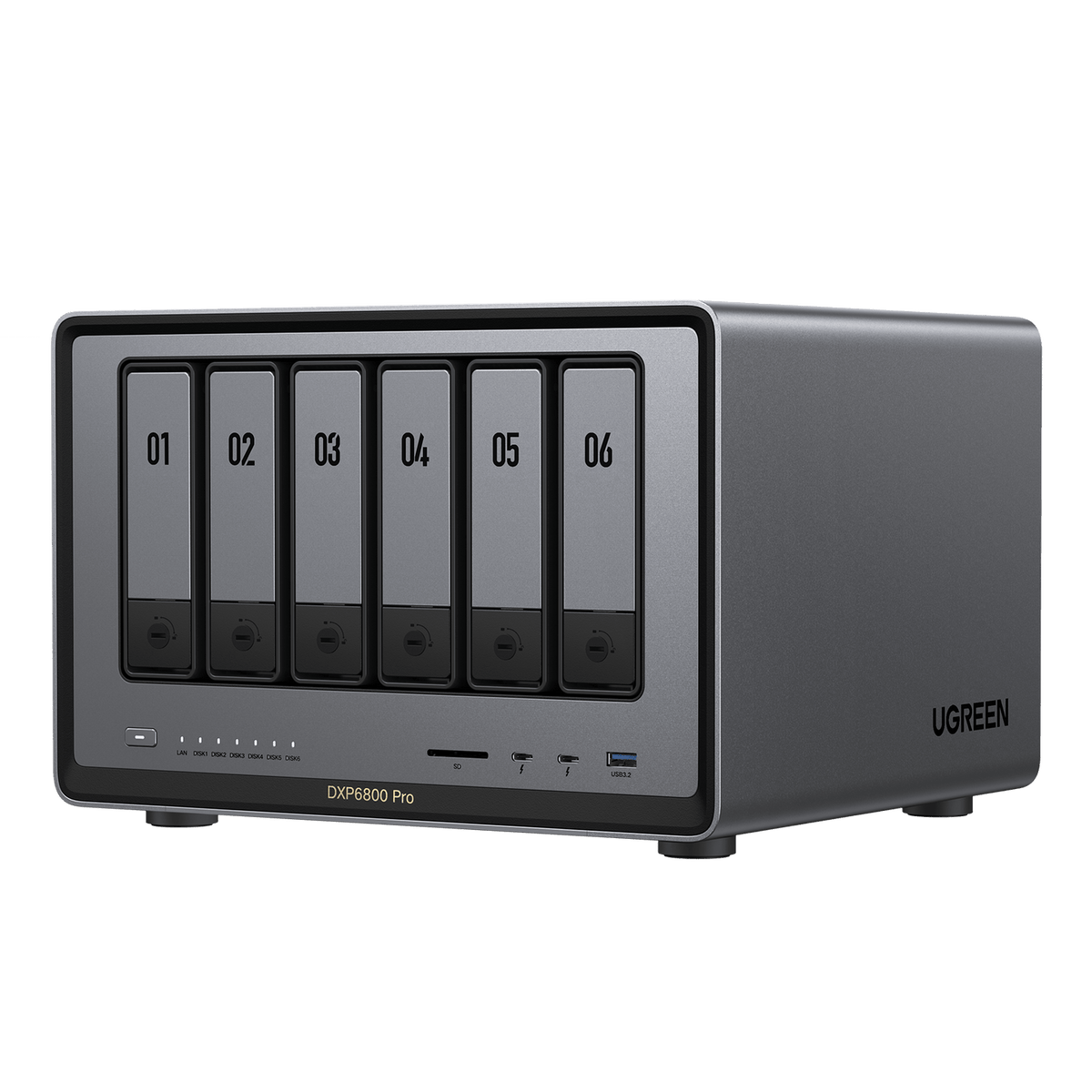

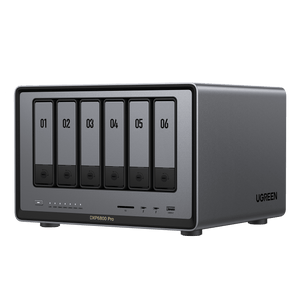

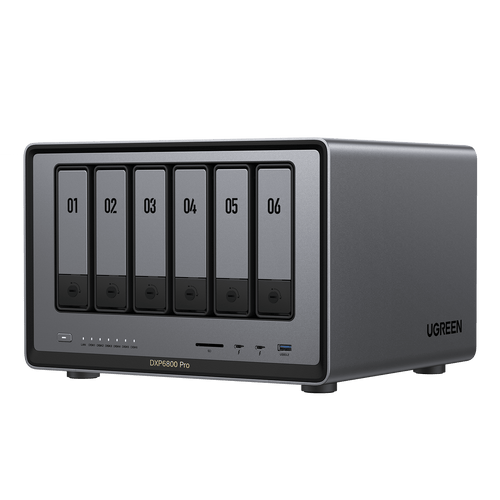

UGREEN DXP6800 PRO
Own massive 196TB data storage with UGREEN DXP6800 PRO features 6 SATA and 2 M.2 NVMe drive bays, supports JBOD/Basic/RAID0/RAID1/RAID5/RAID6/RAID10 RAID levels allowing you to store thousands of your favorite HD movies, pictures and documents making your NASync the ultimate storage space.
UGreen NASync DXP6800 PRO with its Intel i5 1235u 10-Core CPU is widely compatible with all popular third-party hard drives including Western Digital, Seagate, Toshiba and more.
Our all-inclusive NAS app allows you to access storage manage, files, photos and what not, all from one convenient location and expertly supported by an expandable 8GB DDR5 memory at 4800MHz delivers exponential processing speeds with optimal performance.
Specifications:
| SKU | 25898 |
| Model | DXP6800 Pro |
| Supported Languages | English, Deutsch, Français, Español, Português, Italiano, 中文, 日本語 |
| Drive Bays | 6-Bay (SATA) |
| Operating System | UGOS Pro |
| CPU Model | 1235u |
| CPU Brand & Architecture | Intel X86 12th Generation Intel® Core™ i5 10 Cores 12 Threads |
| Memory (RAM) | 8GB DDR5 |
| ODECC | Supported |
| Expandable RAM (Max) | 64GB |
| Flash Memory (System Disk) | SSD 128GB |
| SATA Drive Bays | 6 |
| M.2 SSD Drive Slots | 2 |
| RAID | JBOD/Basic/0/1/5/6/10 |

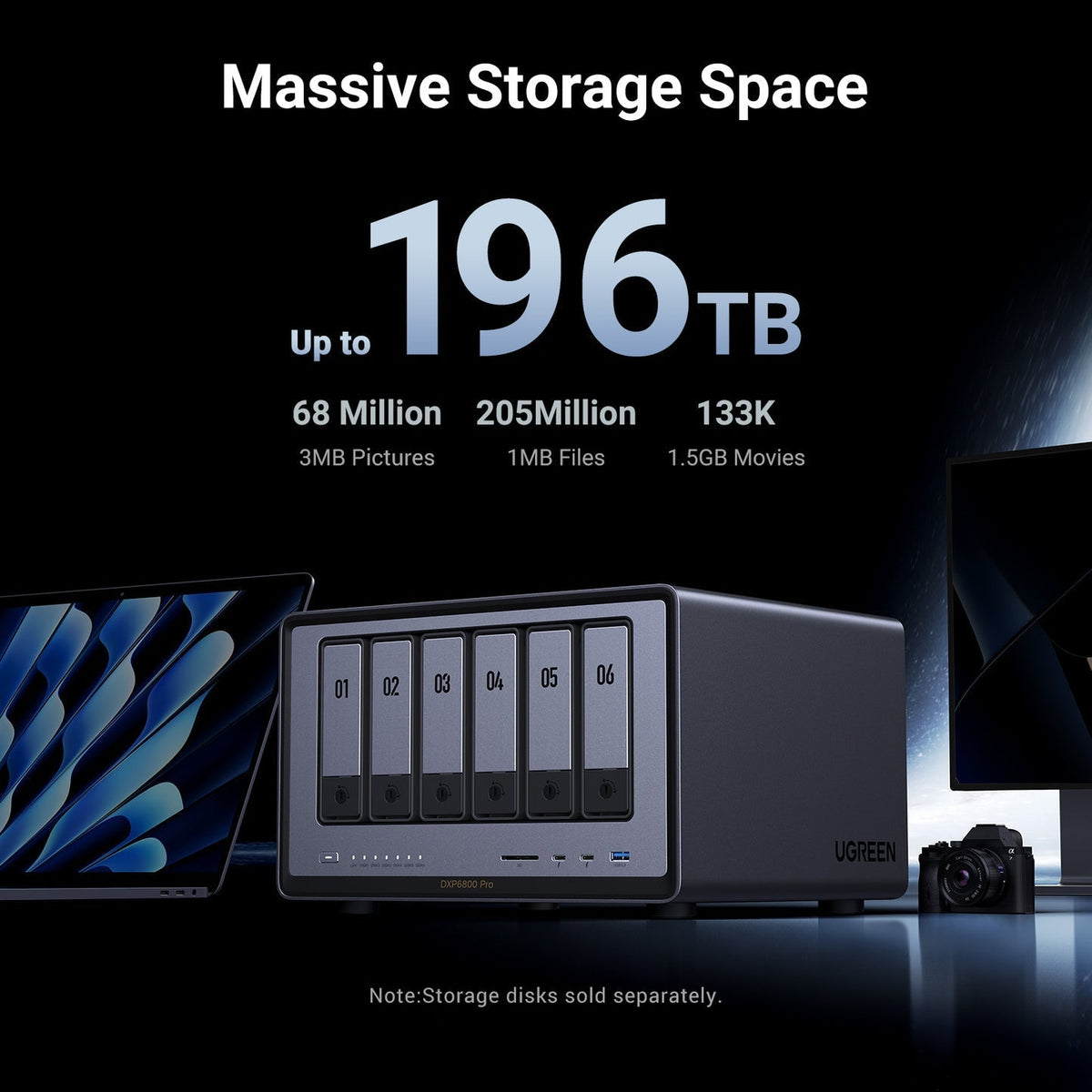

| Maximum Storage | 196TB (6x 30TB + 2x 8TB) |

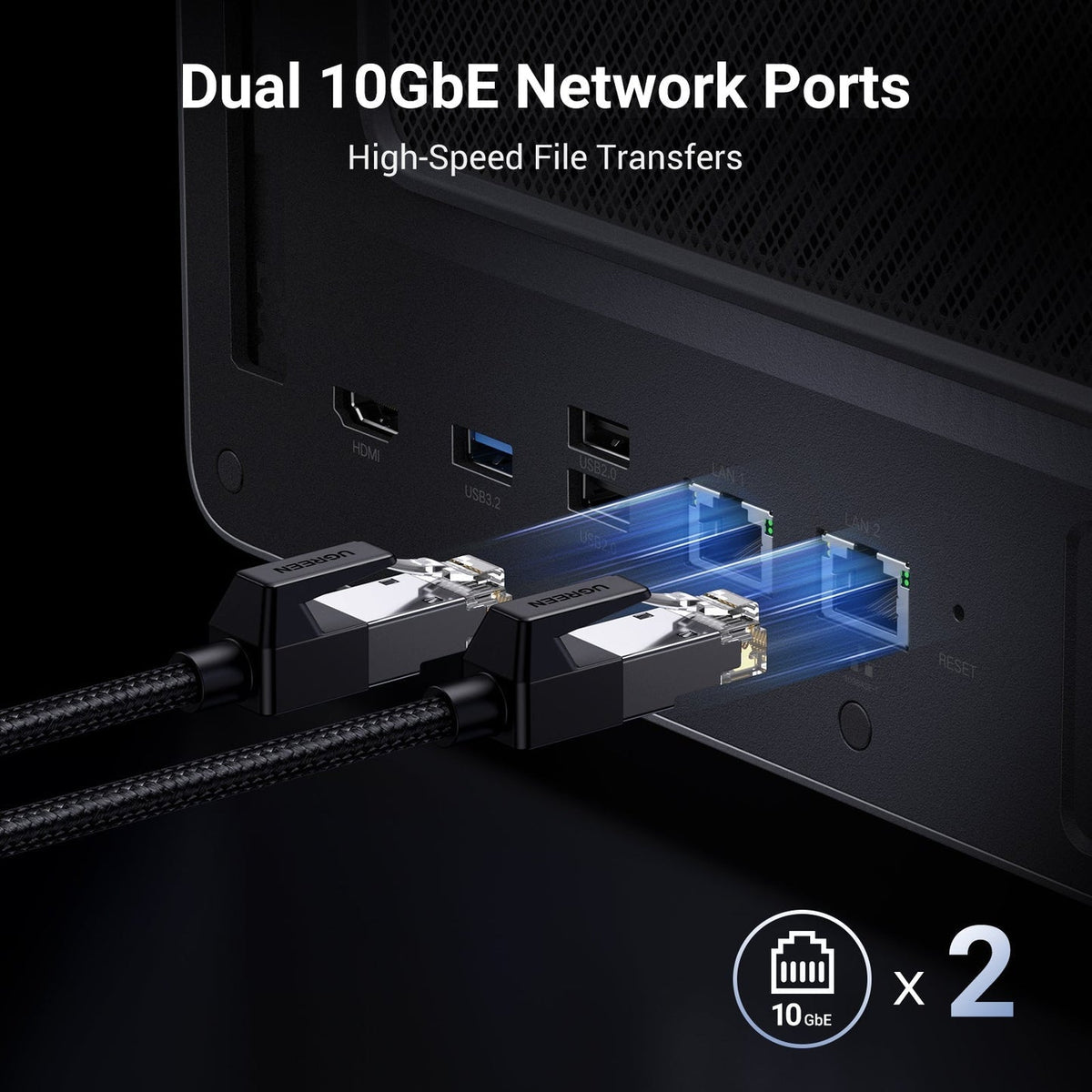

| LAN Ports (RJ45) | 2x 10GbE |
| PCIe Expansion | 1x PCIe x4 |

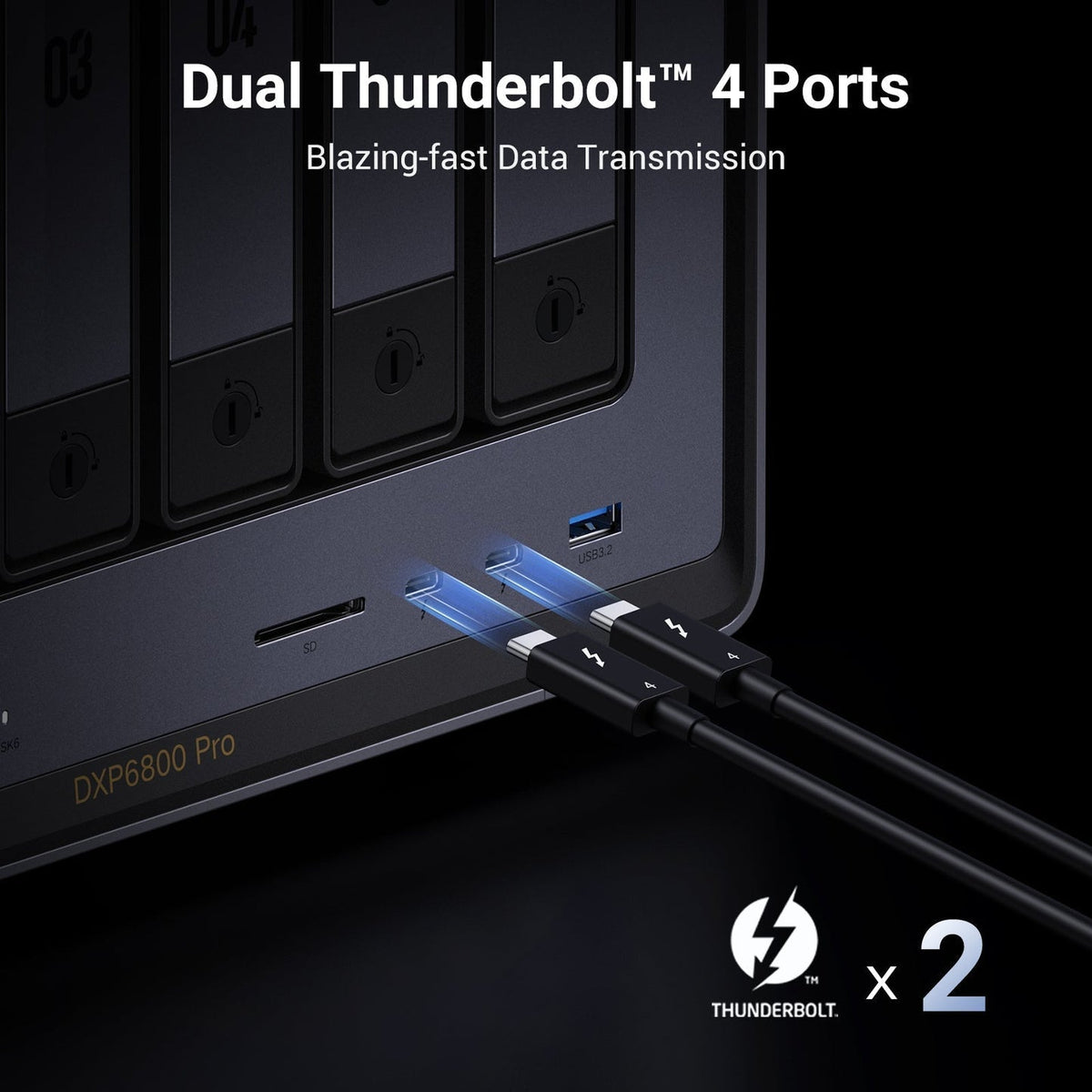

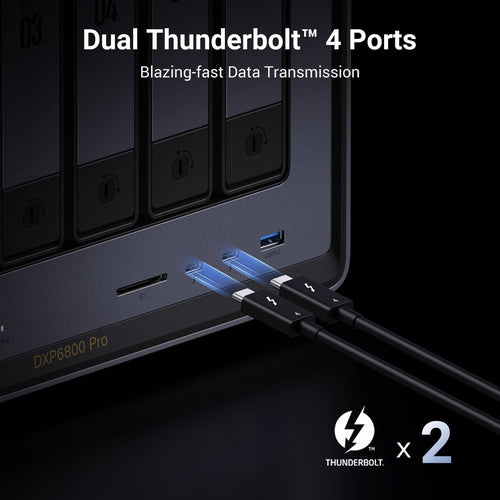

| Thunderbolt™ 4 Ports | 2 |
| High-Speed USB Ports (Front Panel) | 2x Thunderbolt 4 (40Gb/s) |
| High-Speed USB Ports (Rear Panel) | 2x USB-A 2.0; 1x USB-A 3.2 |
| USB 2.0 (Rear Panel) | 2x USB-A (480Mb/s) |
| SD Card Reader | SD 4.0 |
| HDMI | 8K |
| Wi-Fi | - |
| Product Dimensions | L11.54×W10.16×H7.87 inches |
| Power Consumption | 43.07 W (drive access) 24.91 W(drive hibernation) |
What's in the Box:
1 × UGREEN NASync DXP6800 Pro NAS Unit (diskless) – Main NAS enclosure with 6 bays
1 × AC Power Adapter / Power Cable – For powering the unit
2 × RJ45 Ethernet Cables (CAT7) – For network connectivity (10 GbE)
1 × Set of Screws for Drives – Mounting screws for HDD/SSD
SSD Silicone Pads (usually 2) – For M.2 NVMe drives
Hard Drive Tray Keys (usually 2) – To unlock/lock the drive trays
Screws & Small Screwdriver – For installing storage drives
User Manual / Quick Start Guide – Setup & instructions
After-sales / Warranty Card – Support info (in some regions)
