W 30FT x L 40FT x H 15FT Single Truss Arch Storage Shelter
Oct 20th
Ordered
Today – Oct 21st
Order Ready
Oct 23rd – Oct 27th
Delivered
Ships by freight truck. The carrier calls to book your delivery appointment.
Pay securely with
Description

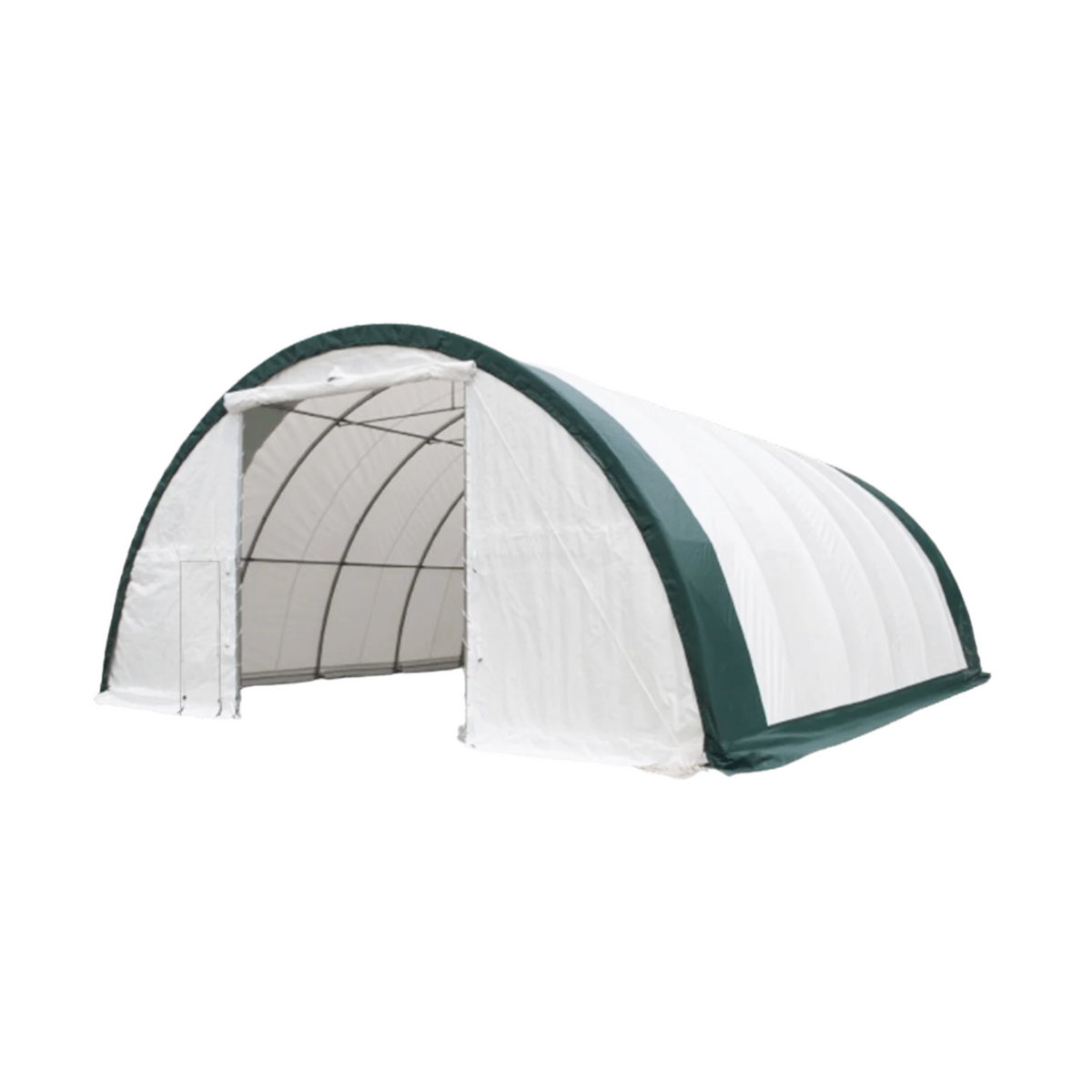

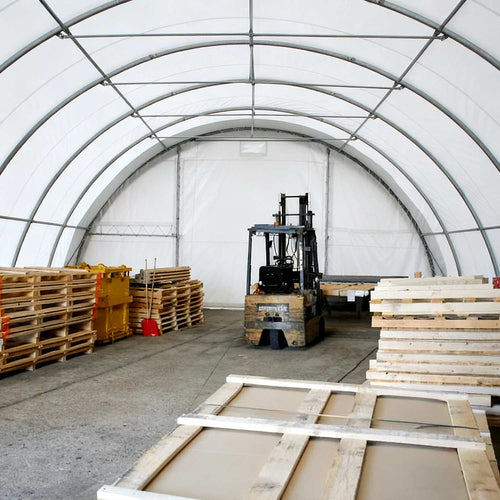

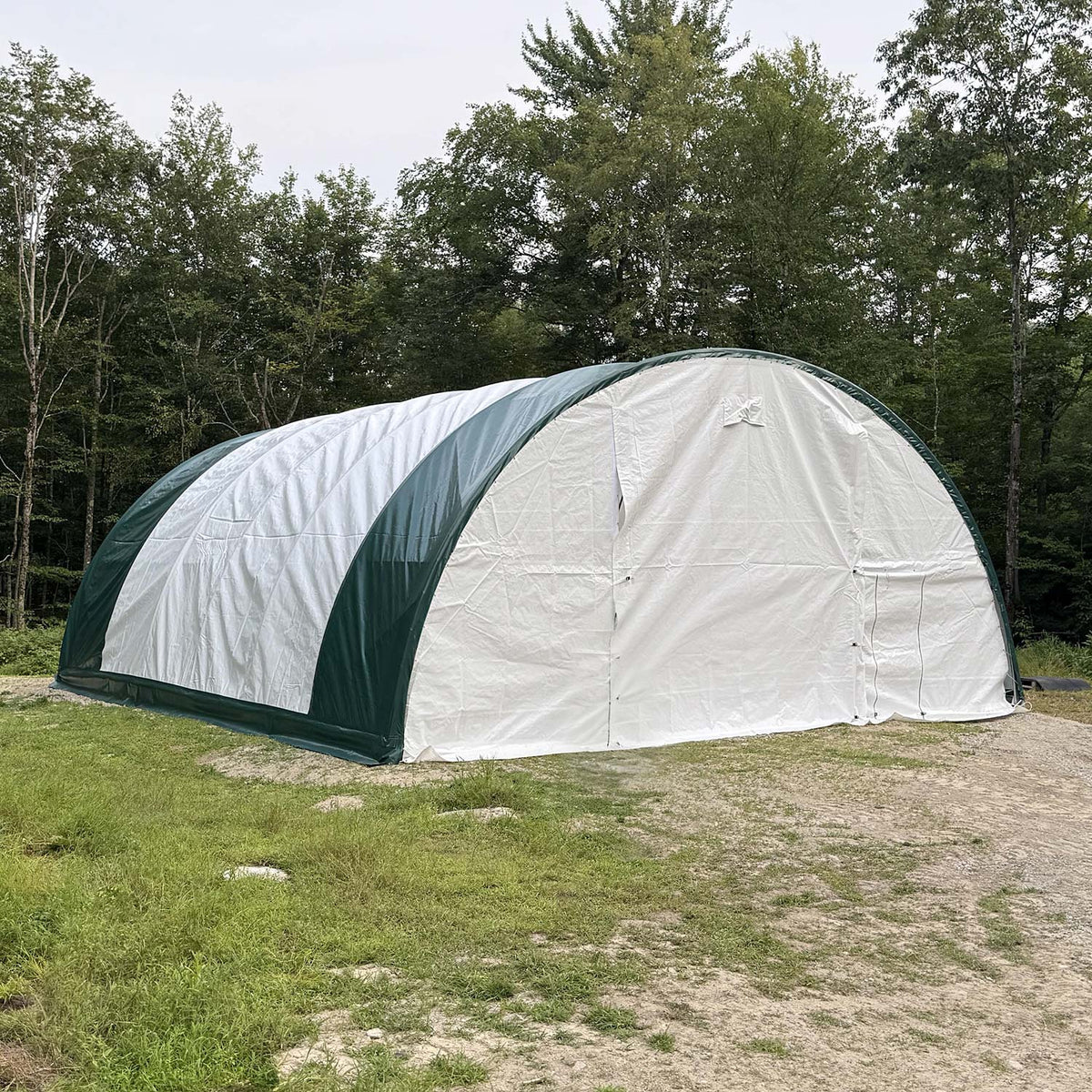

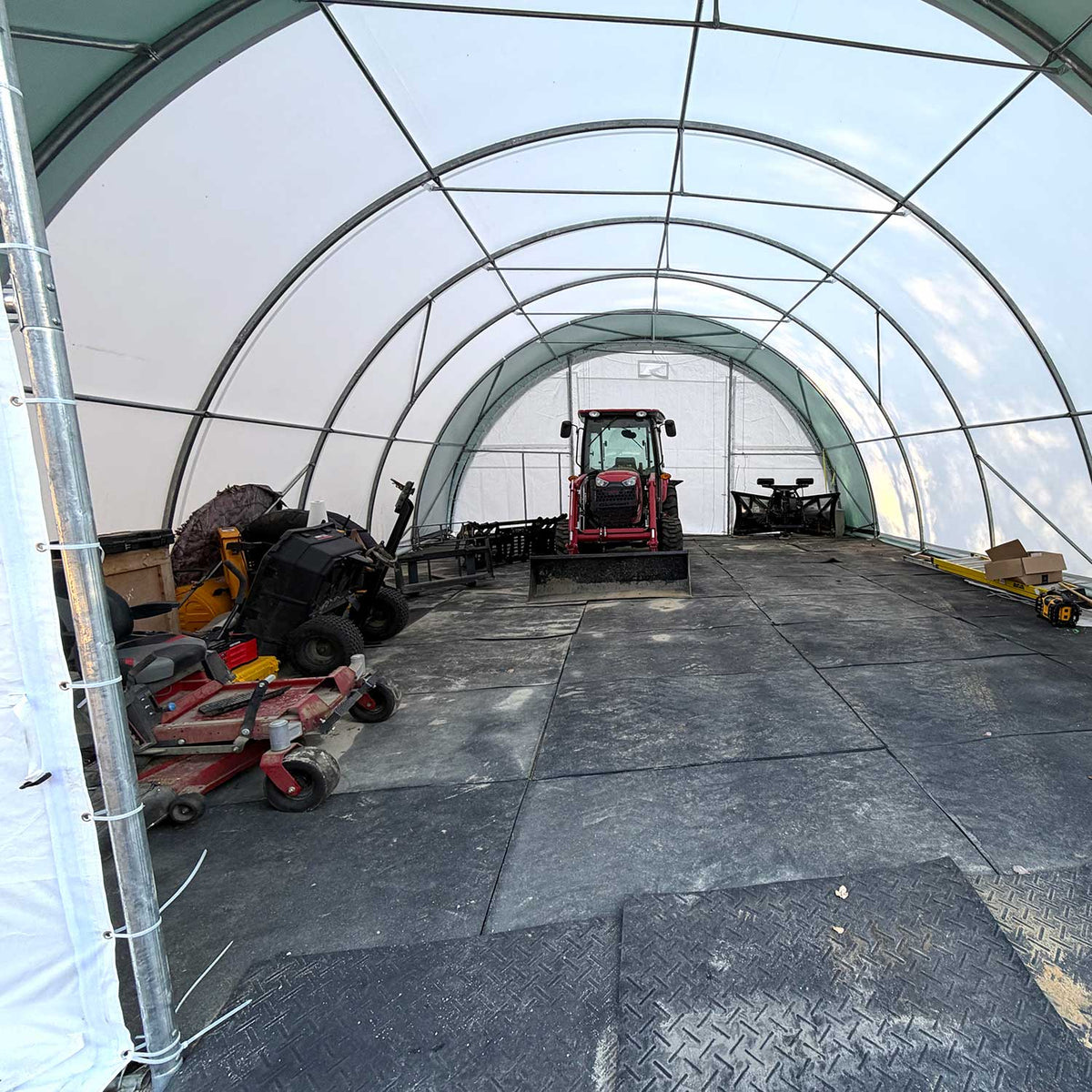

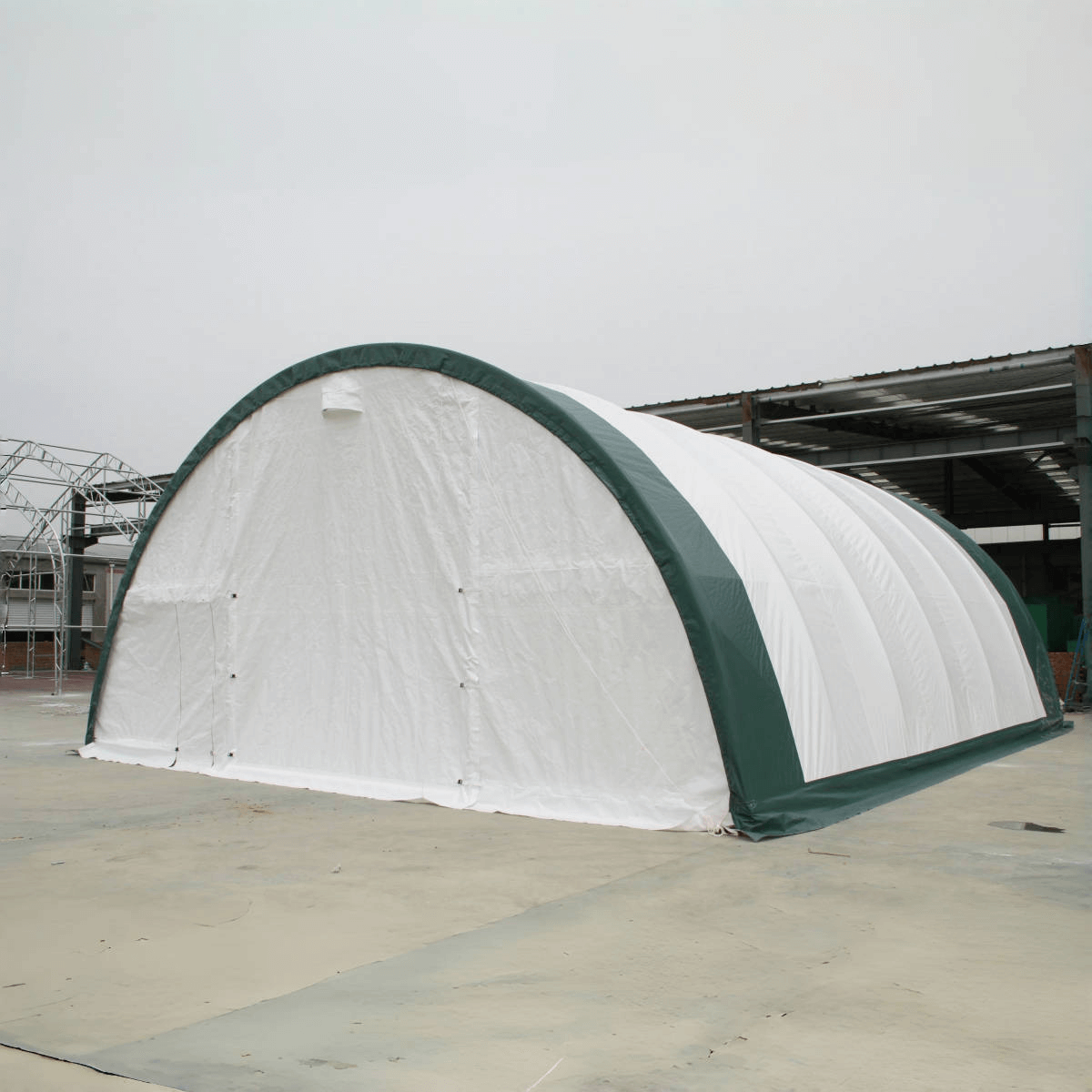

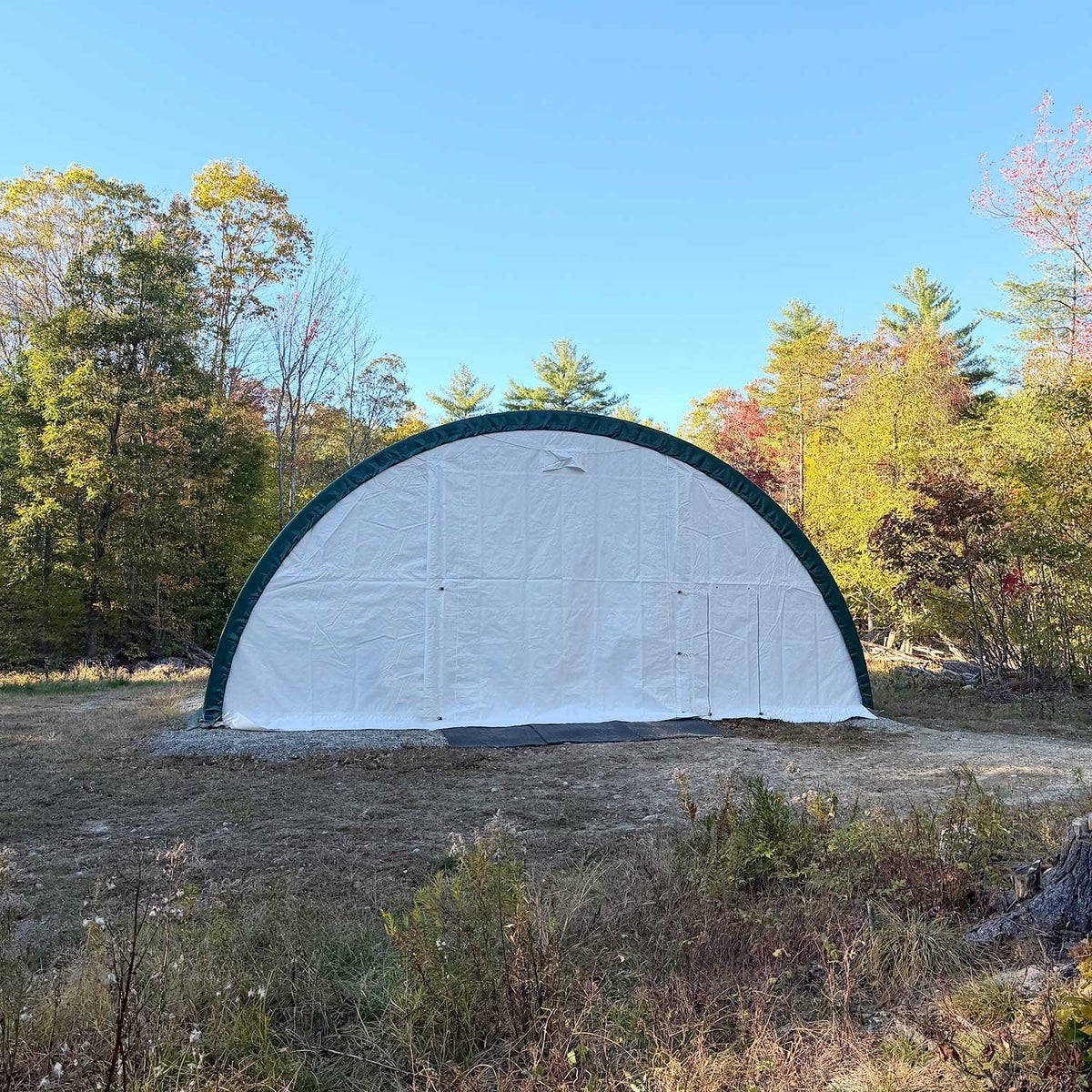

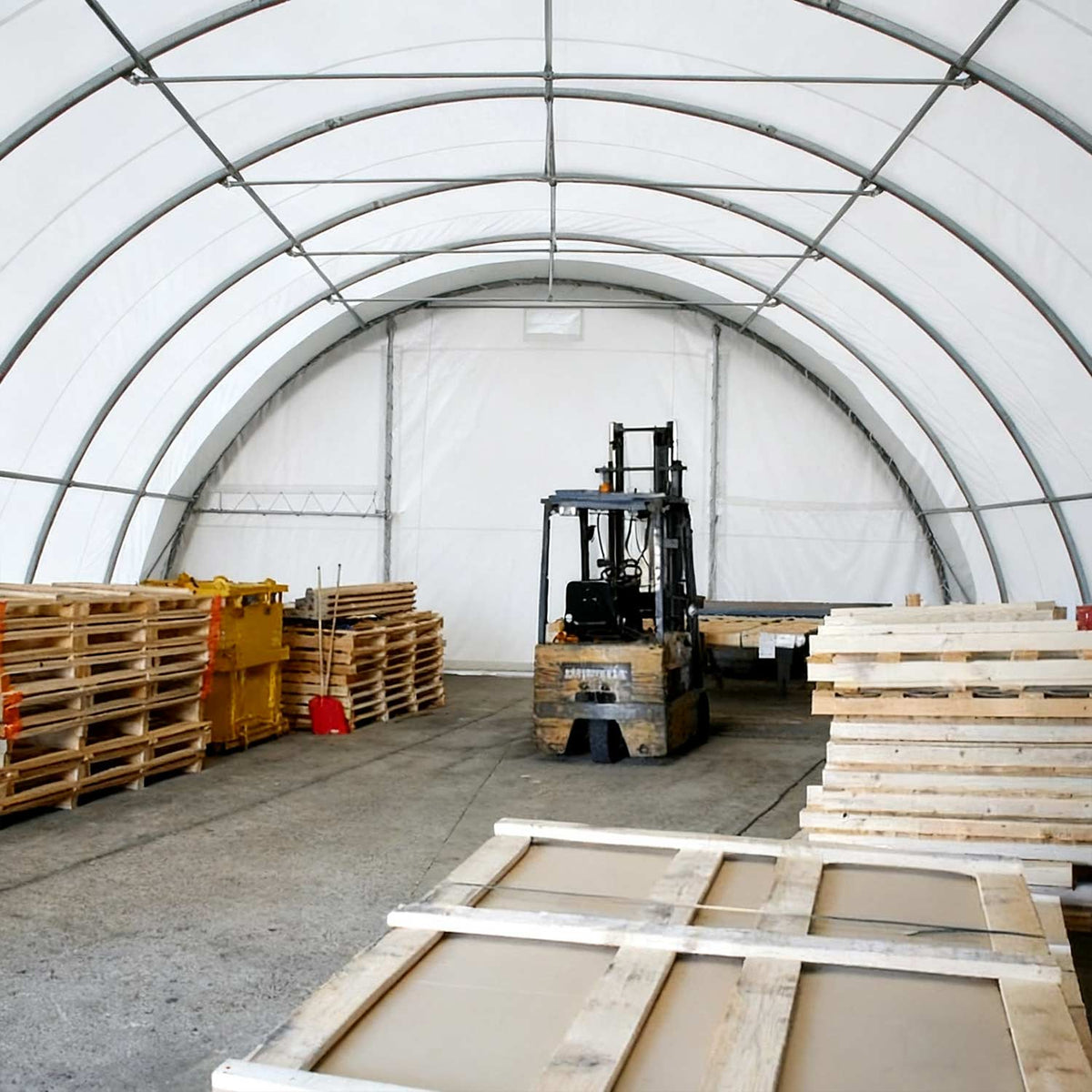

The Gold Mountain Single Truss Arch Storage Shelter W30'xL40'xH15' features a durable galvanized steel frame, providing stability and resistance to wind and snow. Ideal for all-season outdoor storage, on the UV-resistant PE or PVC canopy, which protects against sun and water. The rollup door offers added protection on windy or rainy days. Suitable for industrial, commercial, agricultural, and personal use, it accommodates vehicles, equipment, firewood, and more.

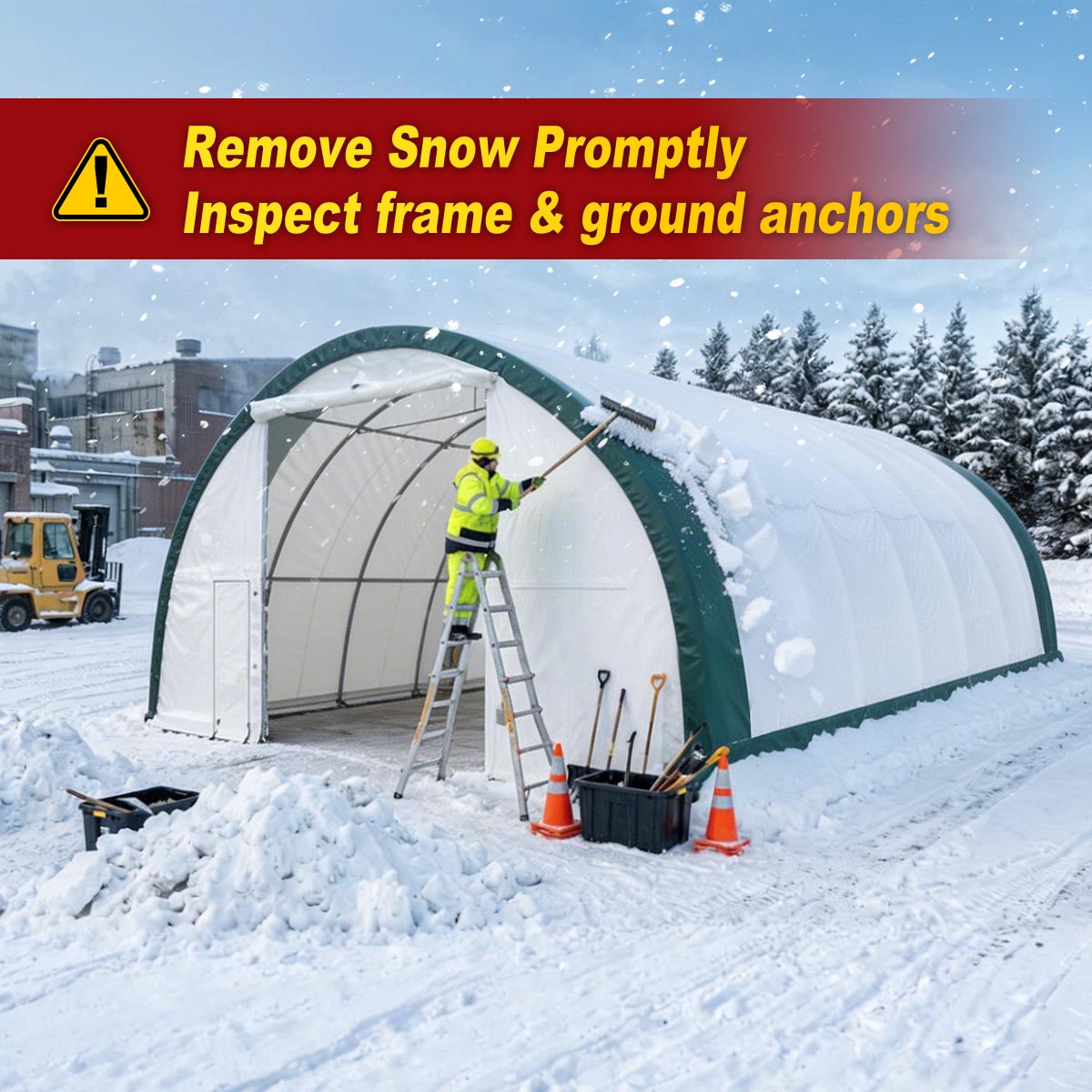

It’s the owners' responsibility to take off snow immediately if not slide off by itself.

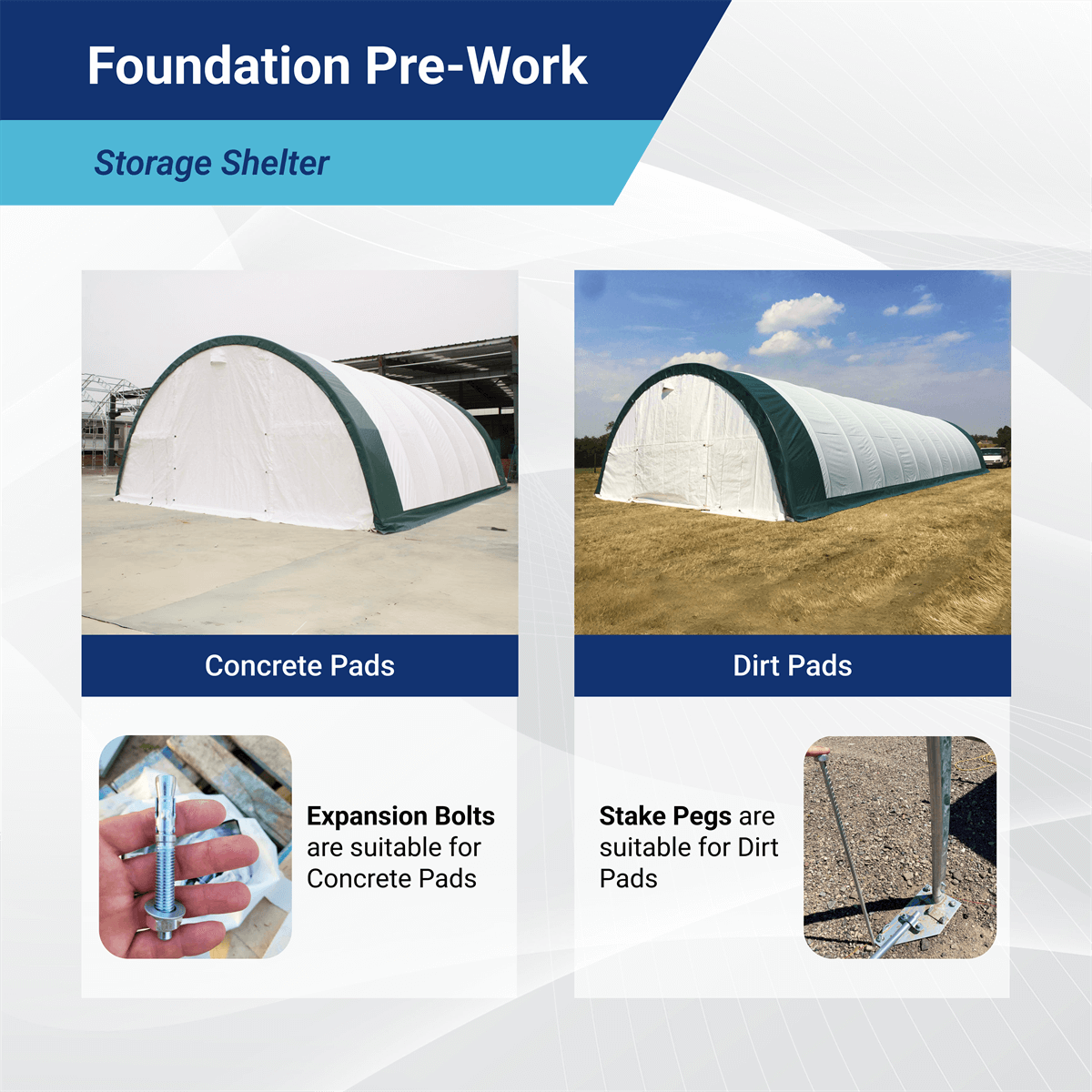

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.

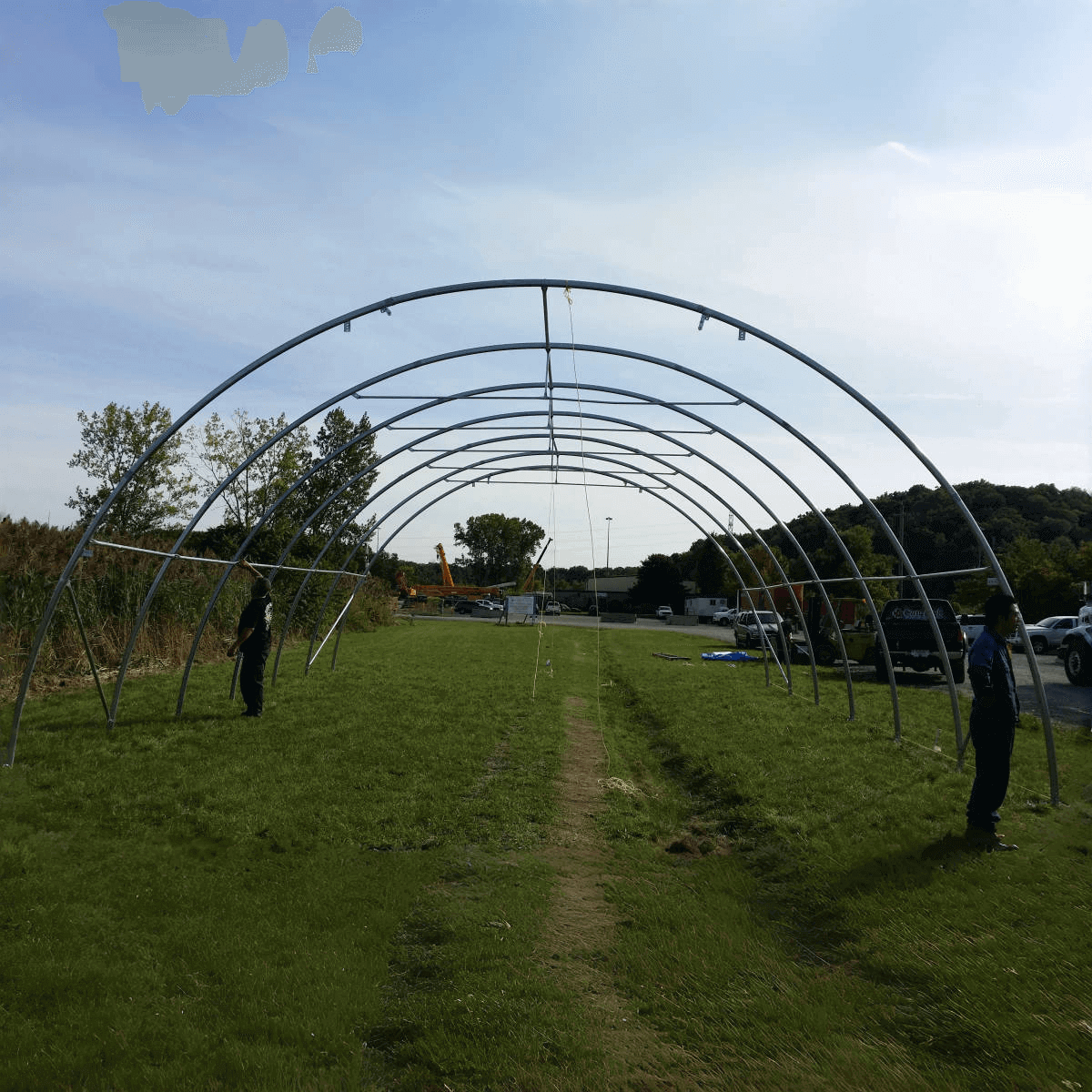

How to build a Storage Shelter?
Specification
| Description | Specifications |

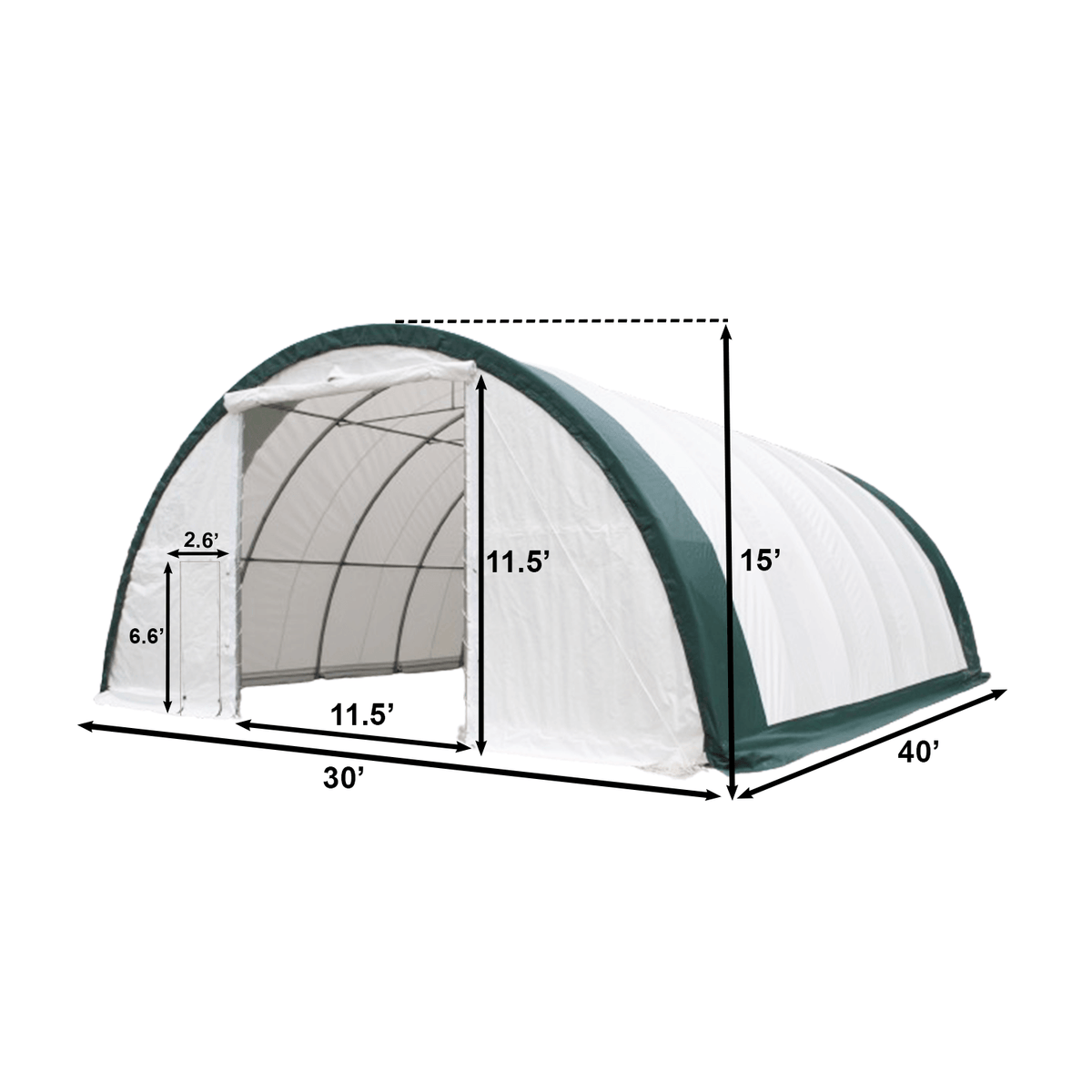

| Dimensions (WxLxH) | 30'x40'x15' |

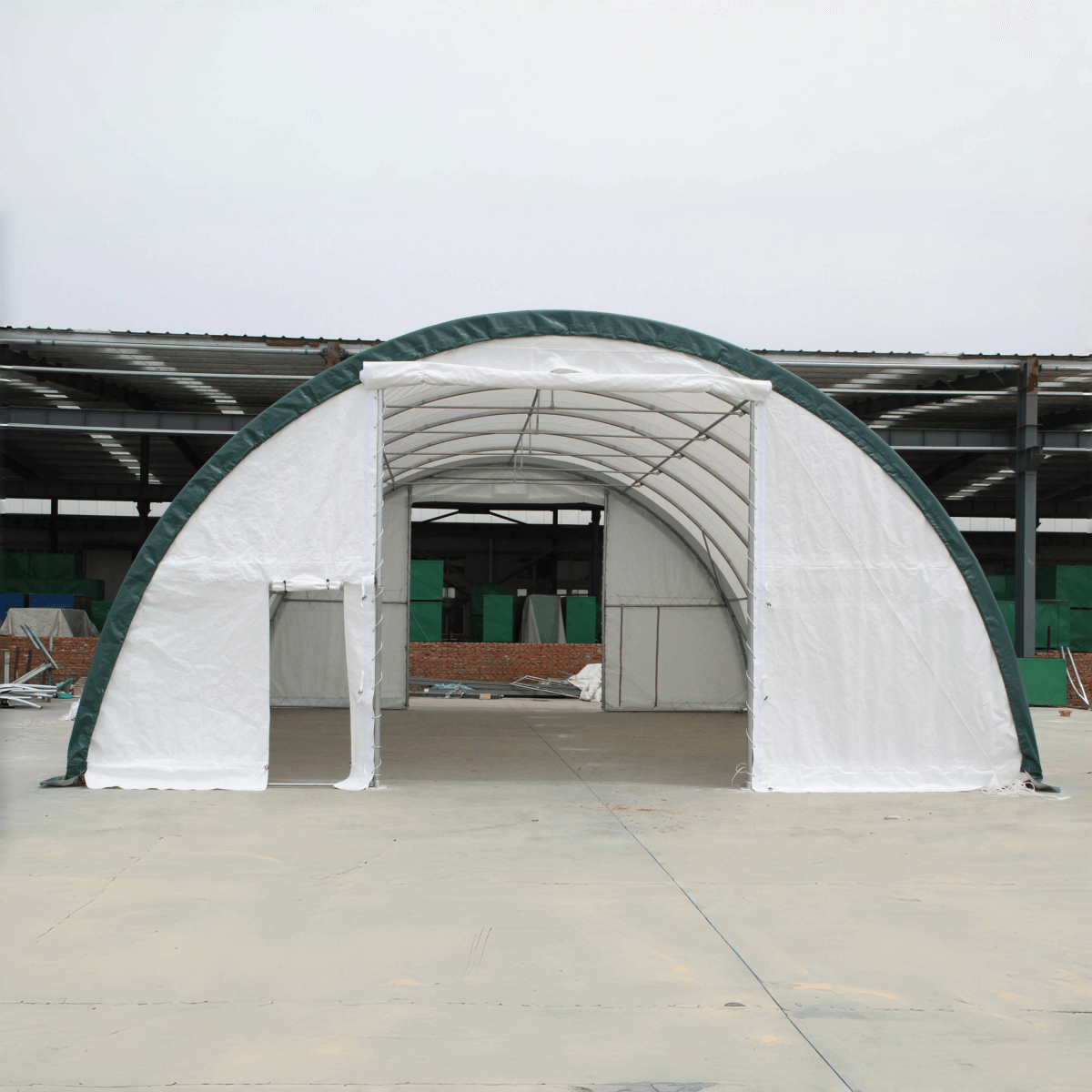

| Door size (WxH) (Front & Rear) | 11.5'x11.5' |
| Door Type | Rope Pullup Door |
| Man Door (WxH) | 2.6'x6.6' |

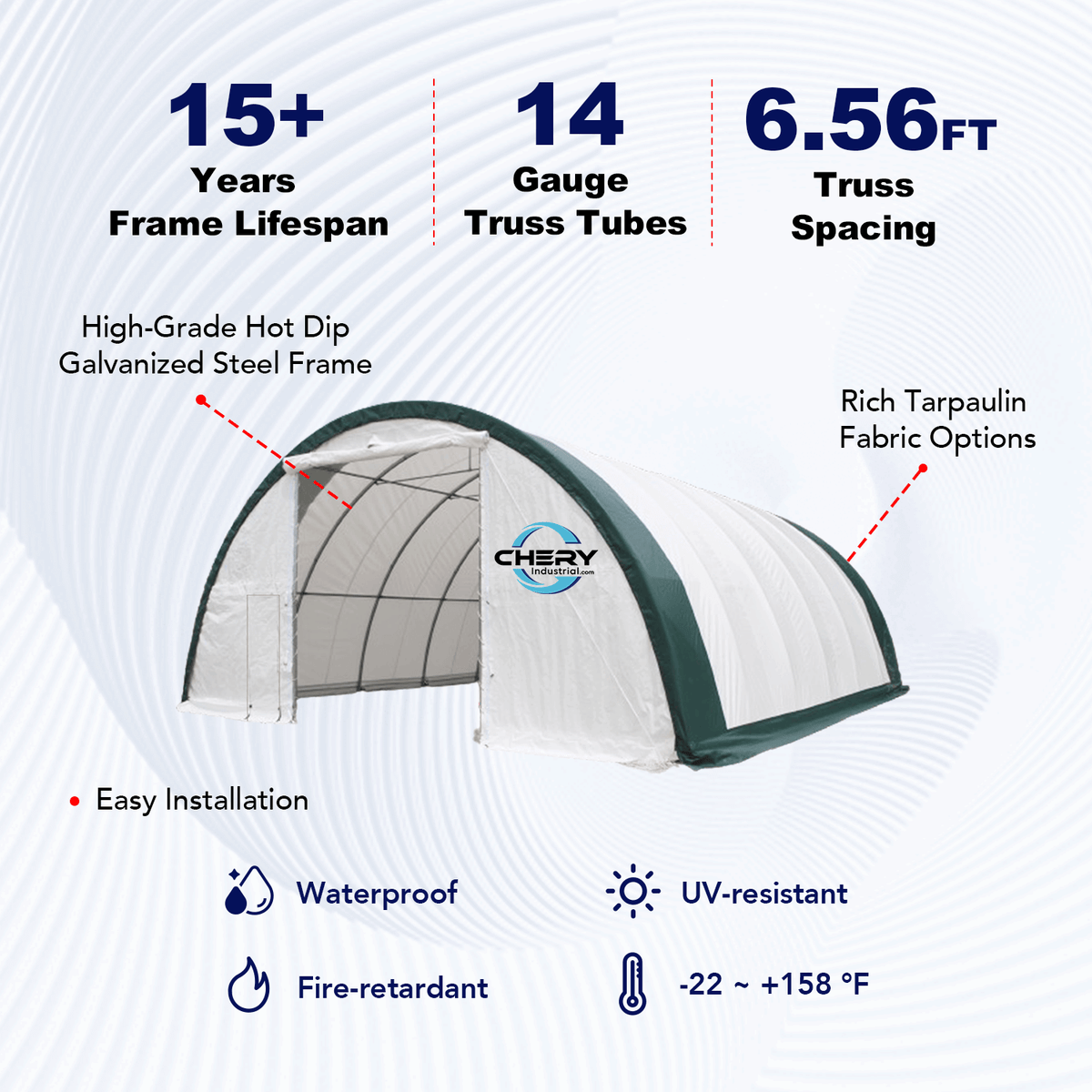

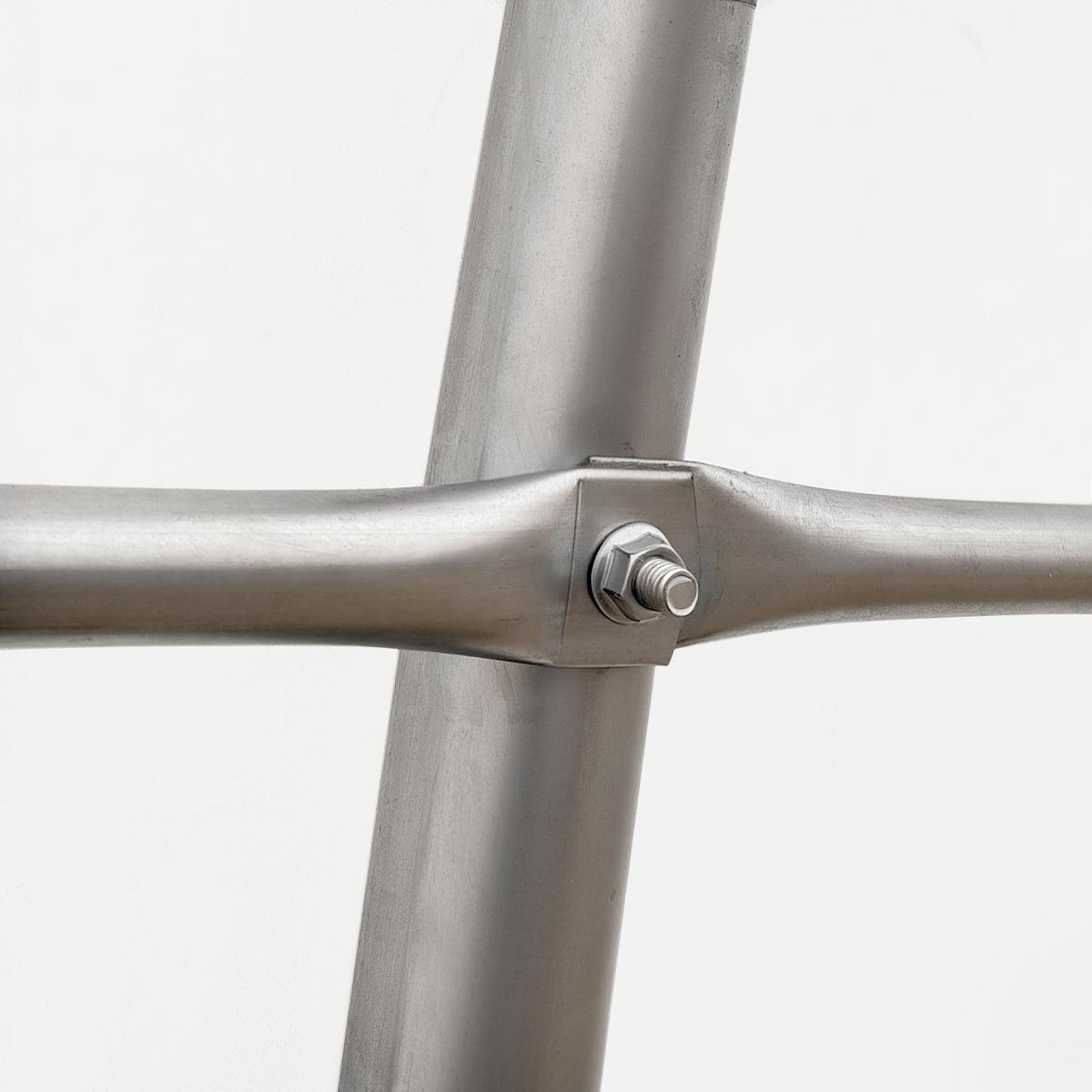

| Frame | Single Truss Galvanized Tube |
| Steel Frame | Hot Dip Galvanized Steel |
| Truss tube | 14 Gauge |
| Tarp Fabric | PE or PVC |
| Tarp Color (customizable) | White with Green/Red Edge |
| Temperature resistance | -22 - +158 °F |
| Arch Ø | Φ 70x42x2mm |
| Purlin Ø | Φ 40x1.5mm |
| Arch Spacing | 6.56 ft |
| Number of Arch | 7 |

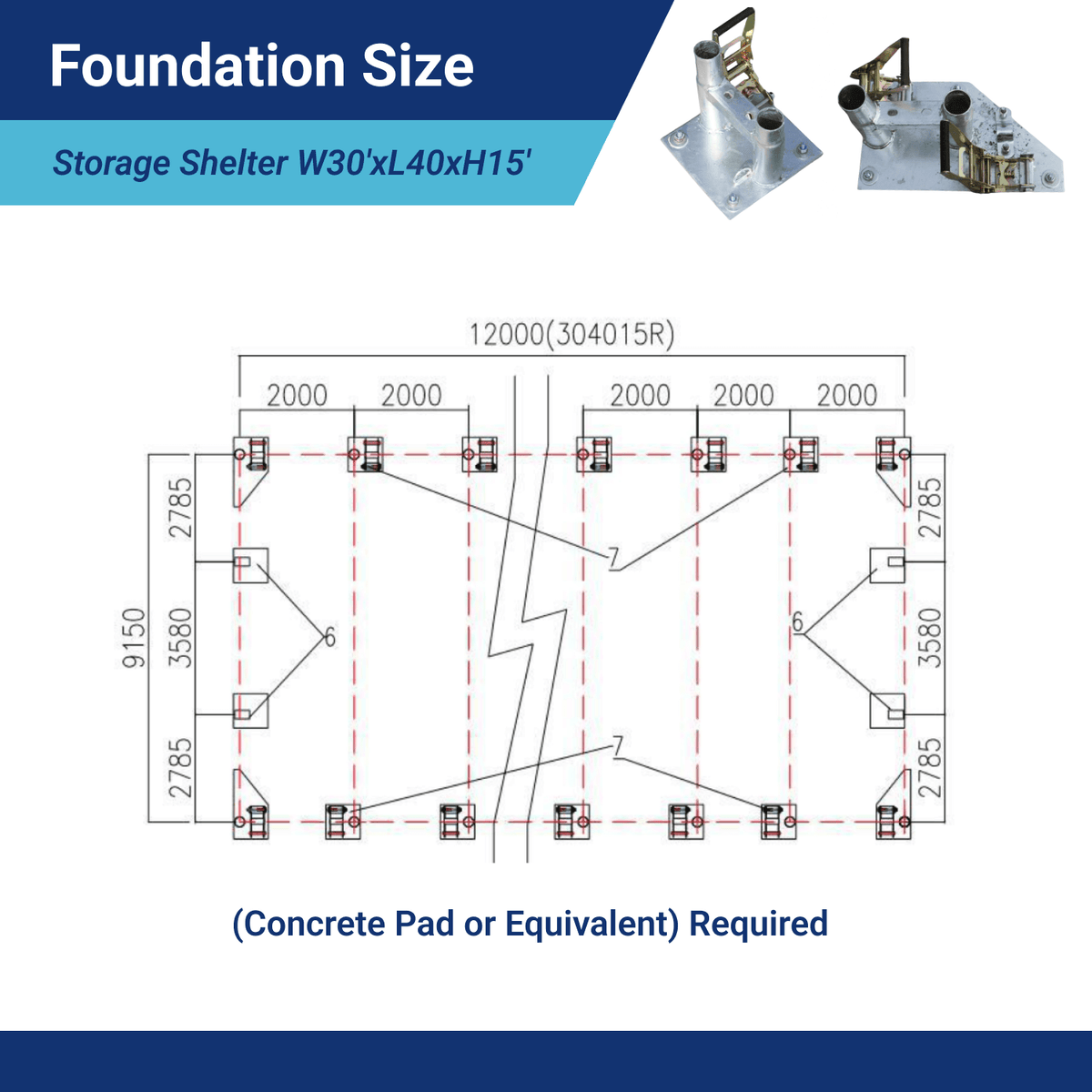

| Number of Anchor plates | 14 |

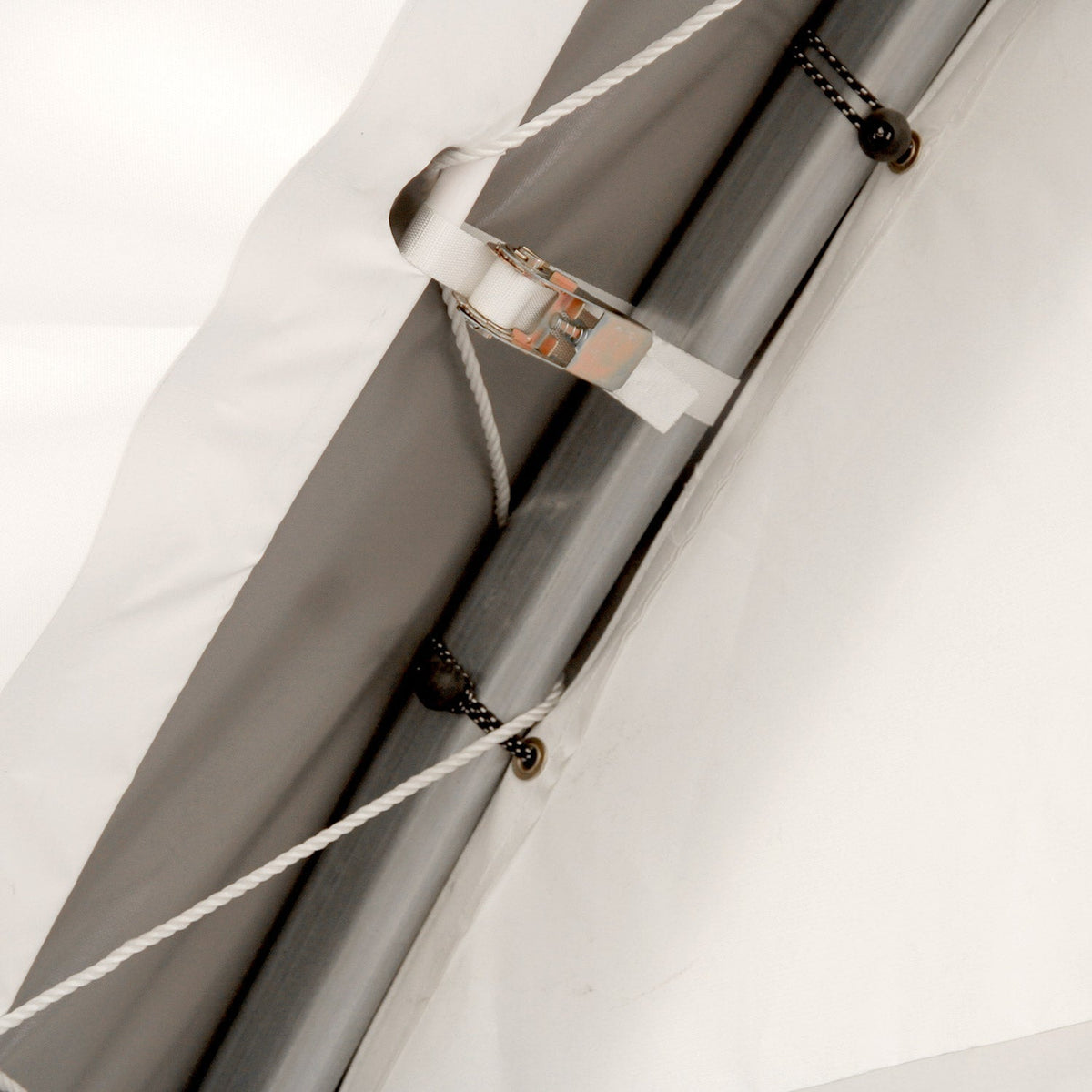

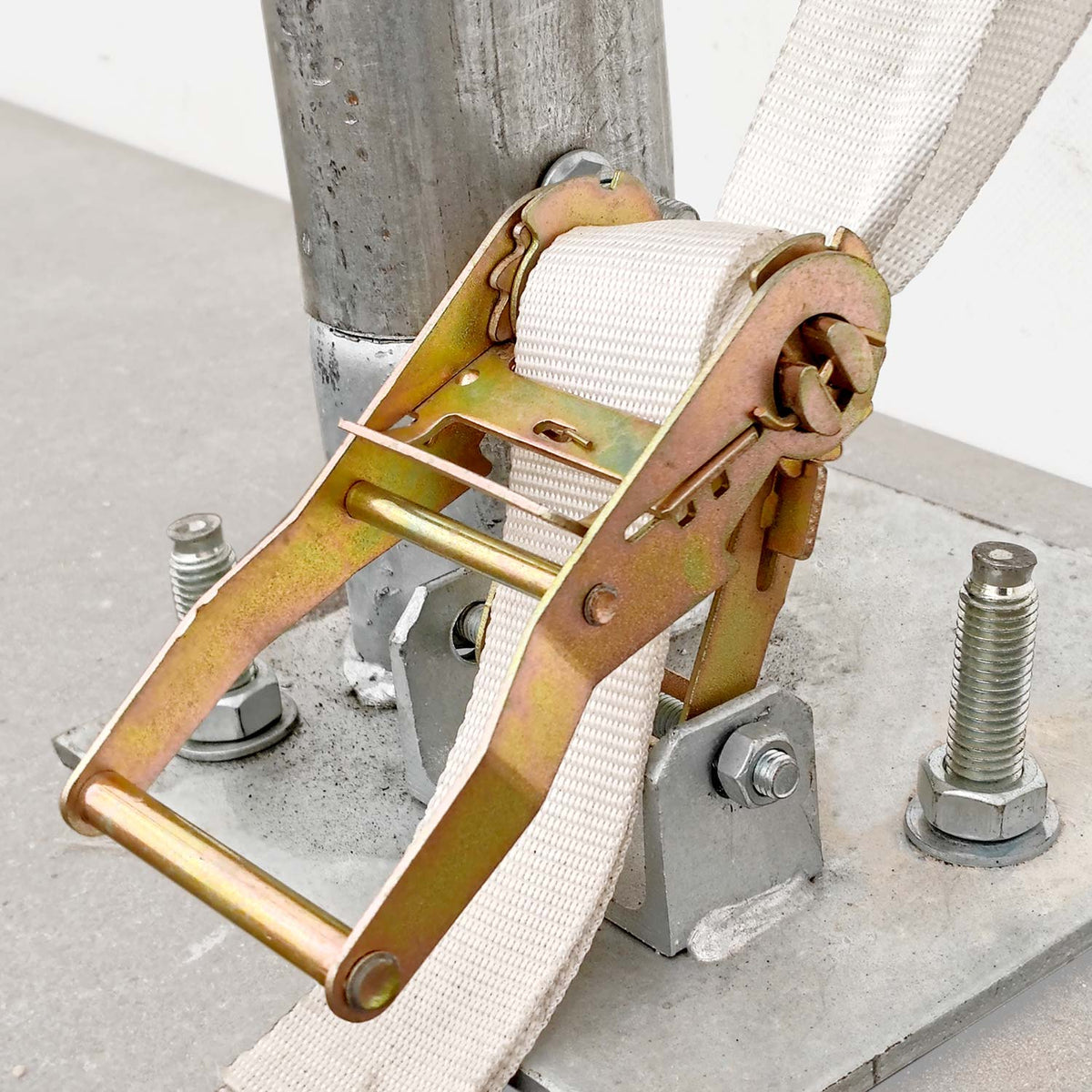

| Tension System | Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons | 3 Days |
| Snow Load | 42 lbs/ft² |
| Wind Load | 50 miles/h |
| Tarp lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
| Frame lifespan | 15+ Years |
| Warranty | - PE: 2 Years Warranty. - PVC: 8 Years Warranty. |
| Fabric (Optional) |
|
Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.

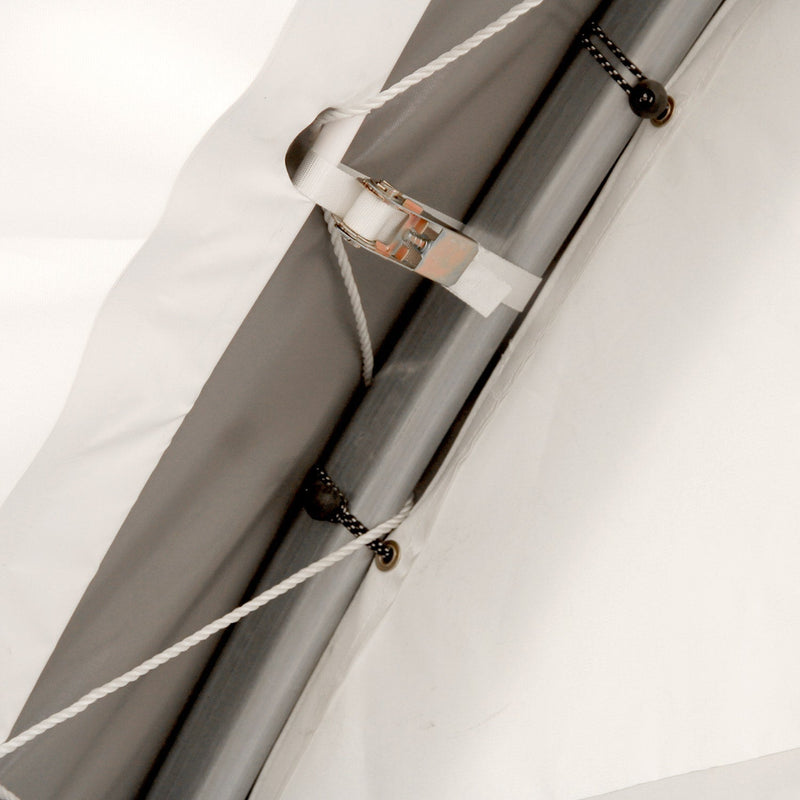

2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.
Feature
- No building permits required*.
- Stable, durable, competitive-priced tent
- Style: Freestanding

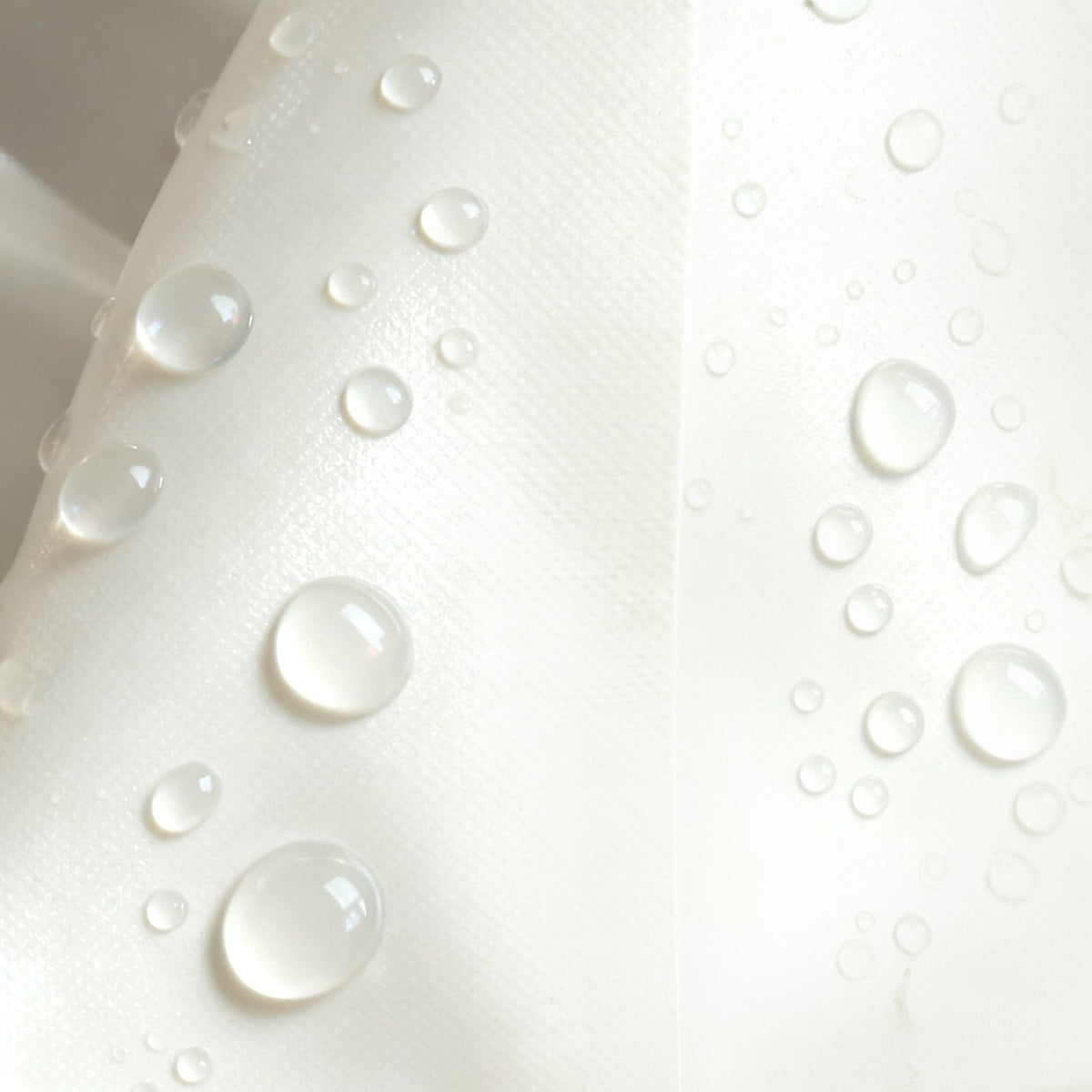

- 100% waterproof, Self-cleaning, Tear-resistant, UV resistant
- CSA/TUV Snow Rating Test Report
- SGS fabric Certificate
- Type: Prefabricated Building
- Certificate: SGS
- Application: warehouses, carports, Event and exhibition tents, Garages for trucks, buses, vans, and boats, Freight warehouses, Commercial tents
Package Size
- LxWxH (inch): 114.2x28.4x25.2
- Weight (lb): 1903
- A forklift or equivalent is required for unloading.
Parts
- Cover replacement
- Front panel
- Rear Panel
- Ratchet
- The Whole Set Cover
Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
s304015, 30x40, 30x40x15, Single Truss Storage Shelter, fallout shelter storage room, Gold Mountain Storage shelter, Gold Mountain dome storage shelter, outdoor storage shelter, Storage Shelter
Shipping & Delivery
Orders are processed within 1–3 business days. Smaller items ship by parcel with tracking and usually arrive in 3–7 business days.
Large items ship by freight truck and usually arrive in 5–14 business days. The carrier will contact you to schedule a delivery appointment. Freight is delivered curbside, so please inspect the packaging before signing.
We ship to the contiguous United States.
Returns & Warranty
Return unused, unassembled items in their original packaging within 30 days of delivery. Items that have been fueled, fired, assembled or used cannot be returned for safety reasons.
If anything arrives damaged or incorrect, contact us within 48 hours with photos and we will replace or refund it at no cost.
New products are covered by the manufacturer's warranty, and we will help you with any claim.
